Allen-Bradley and Hoffman Components used whenever possible
Incoming Control Power: 24VDC (20 Amp Circuit Breaker)
Many different Point IO Modules to choose from.
Red 700HPS Safety Relays for Extra Hardwired Safety Circuits to Outputs or Valve Banks wired to 2 Safety Output Channels (if safety outputs are purchased).

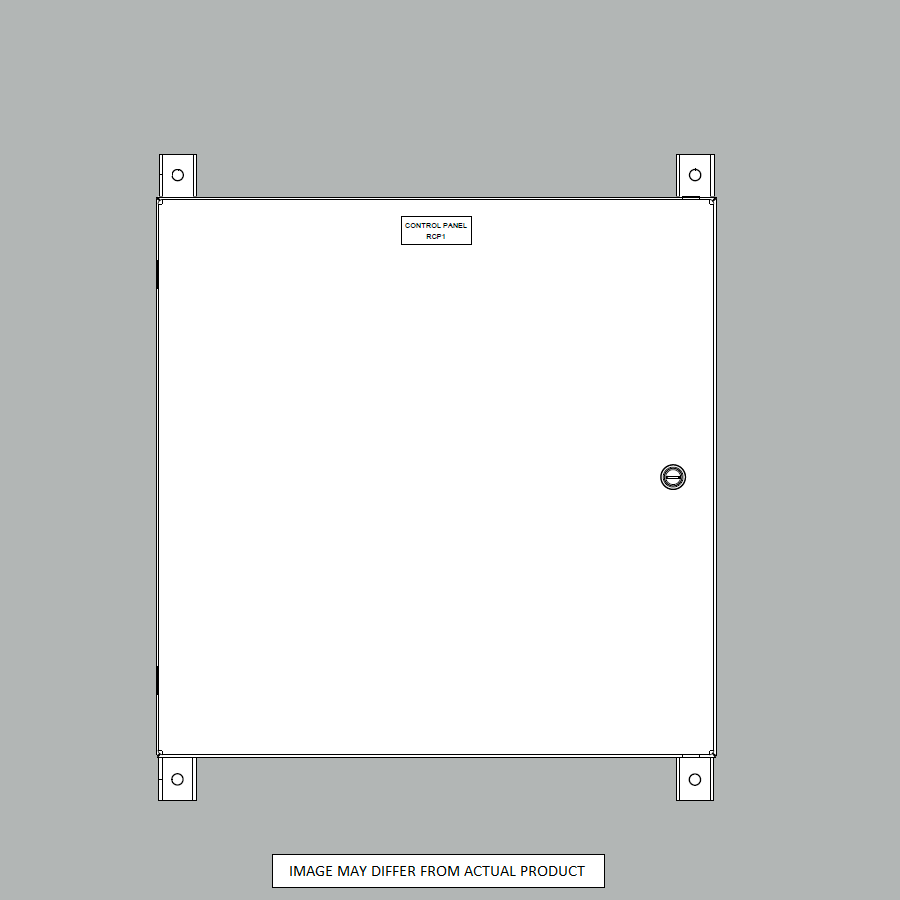

Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit.

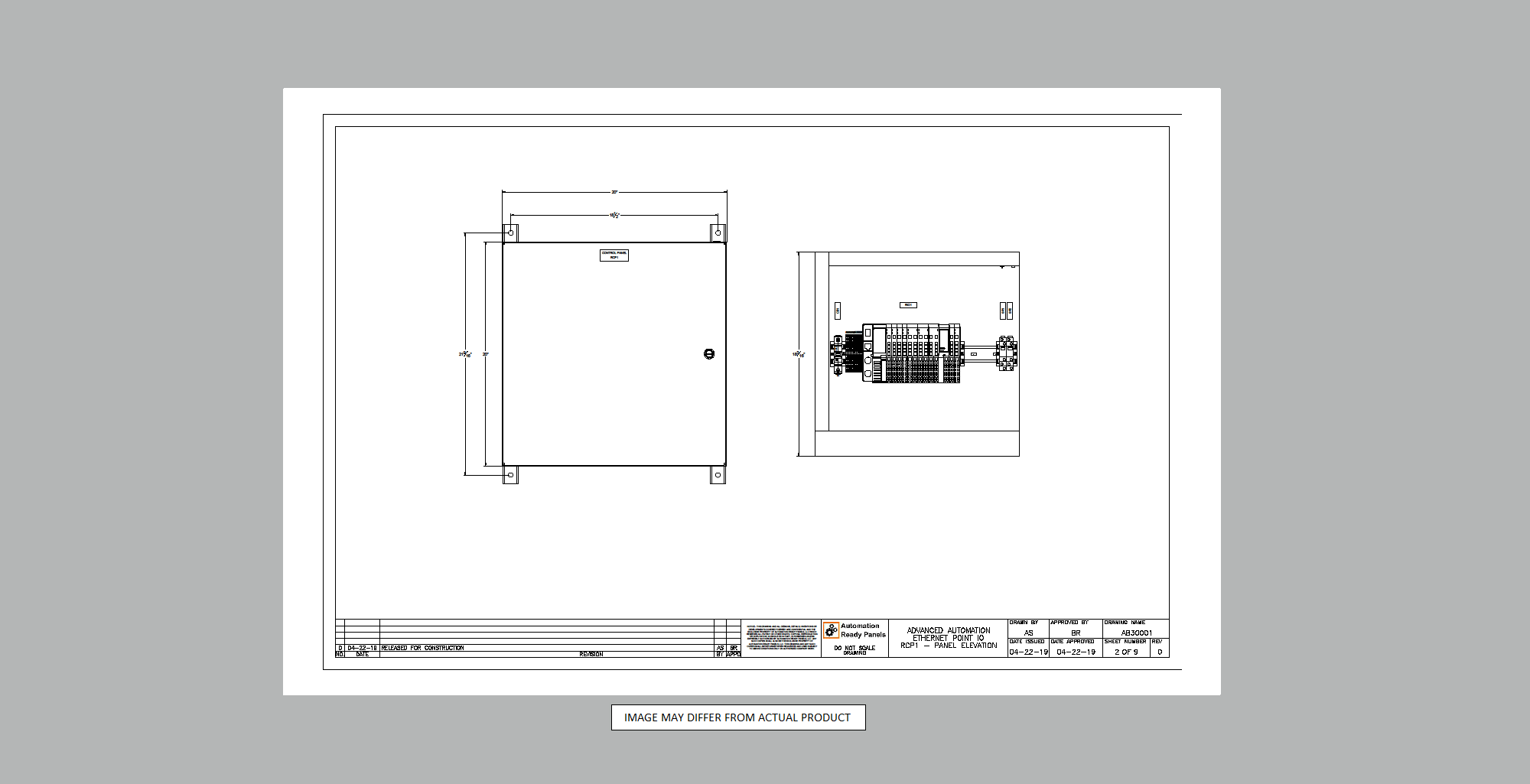

Includes Electrical Schematic Drawings and User/Programming Manual.
1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
Product Description

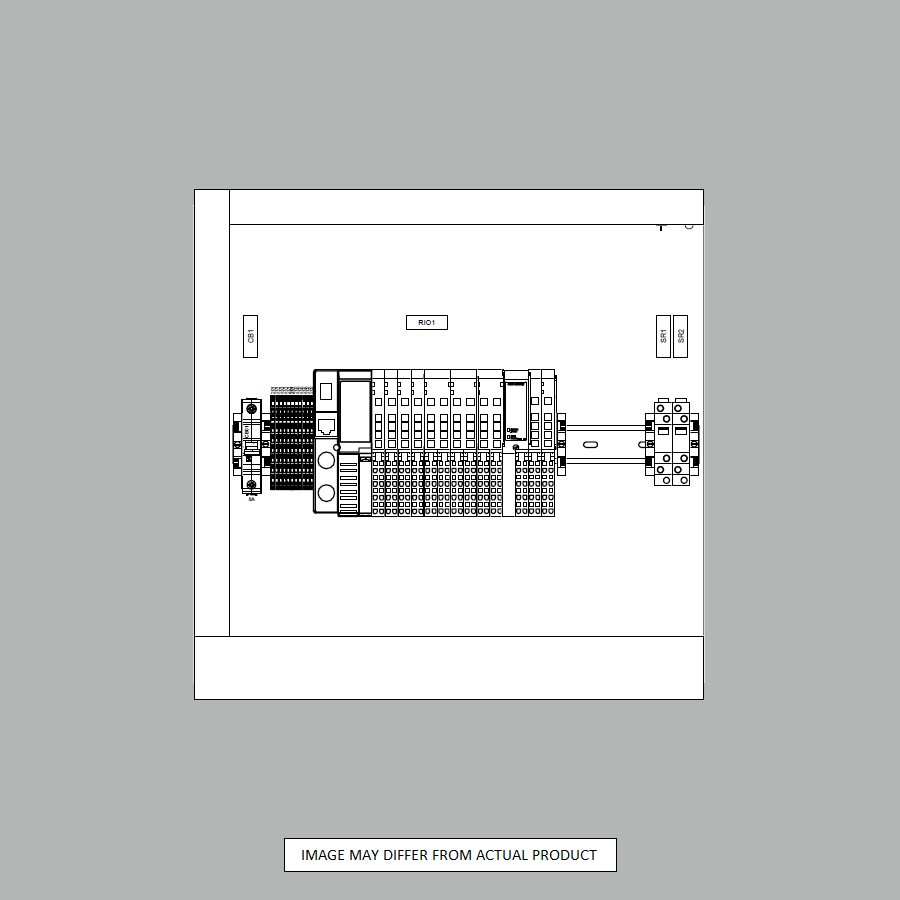

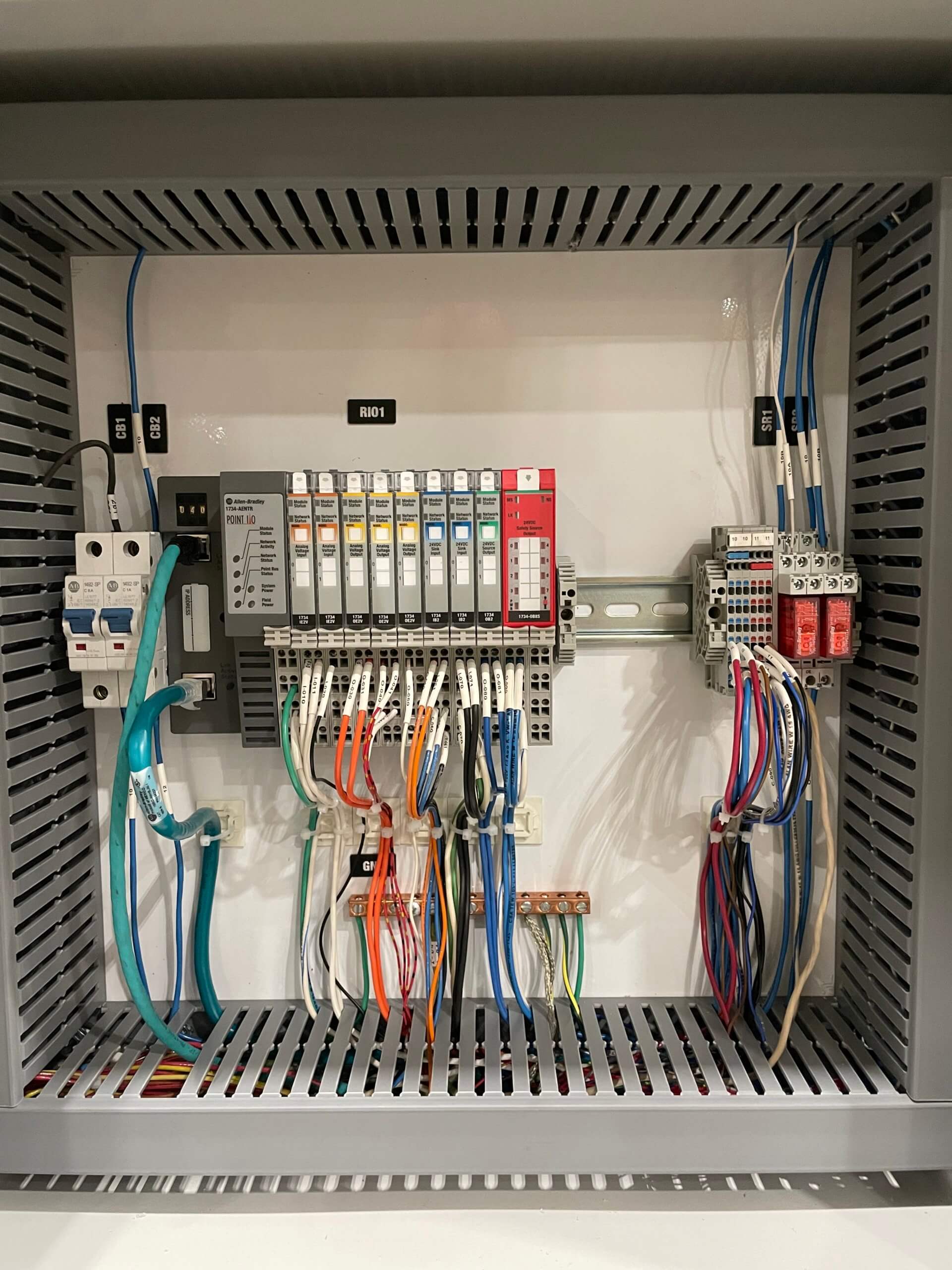

This Advanced Automation level panel is based around a complement of Ethernet/IP Point IO. Inputs and Outputs can be easily expanded with more network-based IO.
This design includes Safety IO and an extra power input adapter for e-stopped power to supply output modules.
(*) Design according to UL508a
Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
