Automation Ready Panels introduces the next level of the Control Panel Design Customer Experience:  Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.

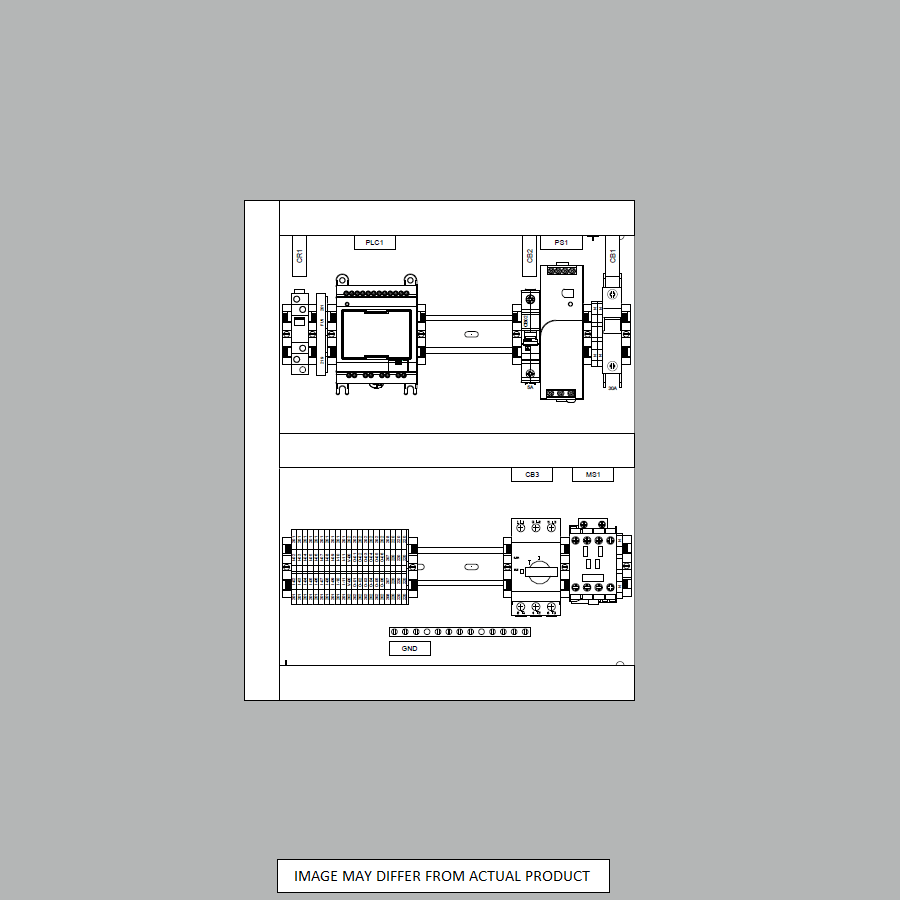

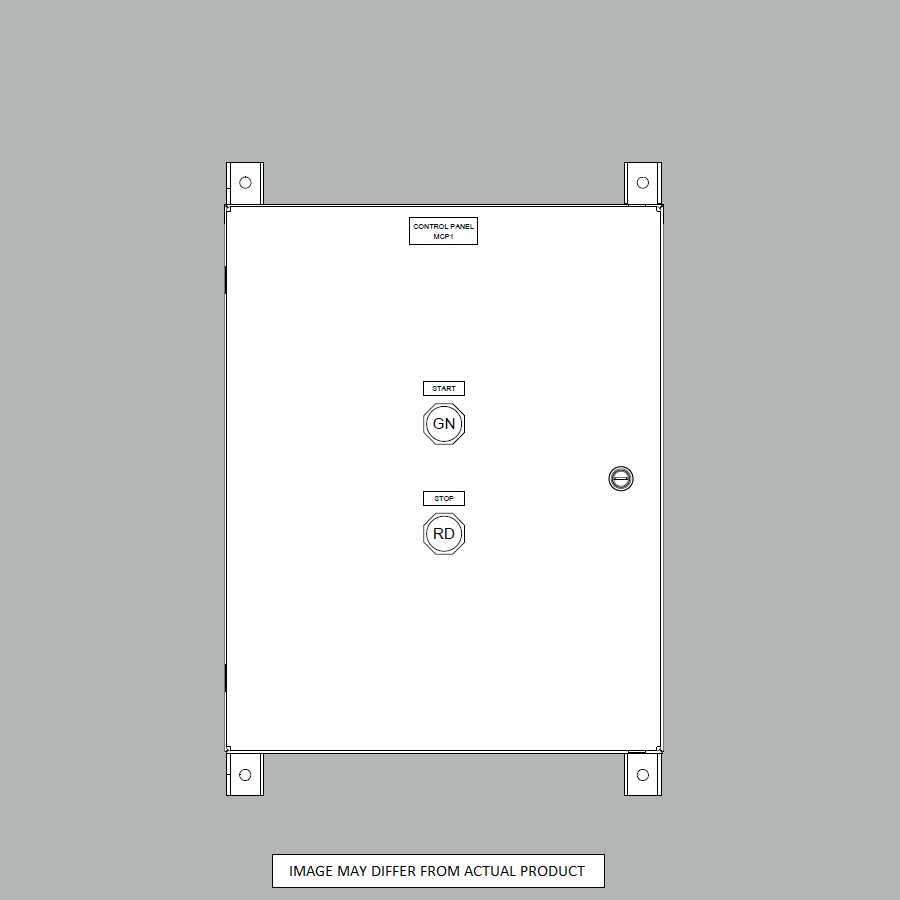

This Simple Automation Panel is based around a small micro PLC, FVNR Motor Starters, and/or Powerflex 4M Variable Frequency Drives (*).  With this control panel, the PLC can be programmed flexibly with many logic options.  Automation Ready Panels pre-programs this system with Discrete Input Debounce (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors.  A pilot light is embedded in the green start pushbutton and programmed to flash with a pattern for system status or other indications.  A shell sequencer program has been added to reduce final integration time.  If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs.  This means that a fully functional controls system can be delivered and ready to install, wire sensors and motors, power up, and the system is up and running.

(*) Up to 2 Motor Starters or VFDs can be used in this design with a Full-Load Amps of less than 30 Amps (Due to our 30 Amp Max Feeder Circuit Breaker Limitation: largest motor amps x 1.25 + sum of other motor amps + non-motor continuous loads x 1.25).  Visit https://www.engineeringtoolbox.com/elctrical-motor-full-load-current-d_1499.html for motor FLA chart.  Panel Size may be larger than shown if large VFDs are selected (May also include fan/filter kit if VFDs are selected).  Temperature calculation assumes only back of panel has no air flow, Indoor Use (out of direct sunlight), 50-90°F Ambient temperature.
(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a

Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
