Standard Automation: PLC/HMI Only, Panelview 800, Micro820
Standard Automation: PLC/HMI Only, Panelview 800, Micro820
$3,653.00
About Product
120VAC Feeder Power (6 Amp)
Allen-Bradley and Hoffman Components used whenever possible

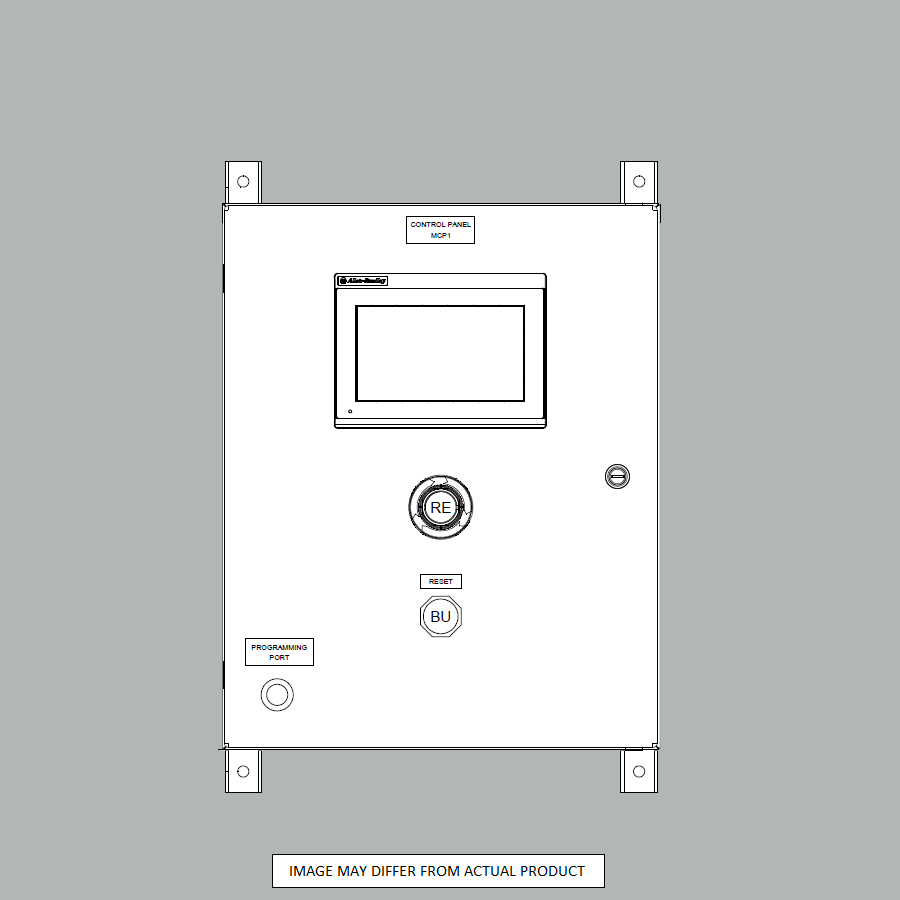

Micro820 PLC, 4″ or 7″ Color/Touch Panelview 800 HMI with Mushroom Head E-Stop and Reset Pushbuttons or LCD Display w/Start-Stop Pushbuttons (default is Start-Stop Pushbuttons Only), and a RJ45 Convenience Programming Panel Connector
Control Power: 24VDC (10 Amp)
(Up to 12/8) 24VDC Inputs or (4) Analog (0-10VDC) Inputs, (Up to 8) Relay Outputs, (1) Analog (0-10VDC) Output, pre-wired to Terminal Blocks.
Red 700S Master Safety Contactor, E-Stop PB, and Reset PB for Enhanced Hardwired Safety Circuit (optional)
Mild Steel ANSI Grey Type 4 Painted Panel Enclosure with Mounting Foot Kit
Pre-programmed with On/Off Debounce AOIs (each input), Manual Motor Control, VFD Status, IO Status, Basic Sequencer

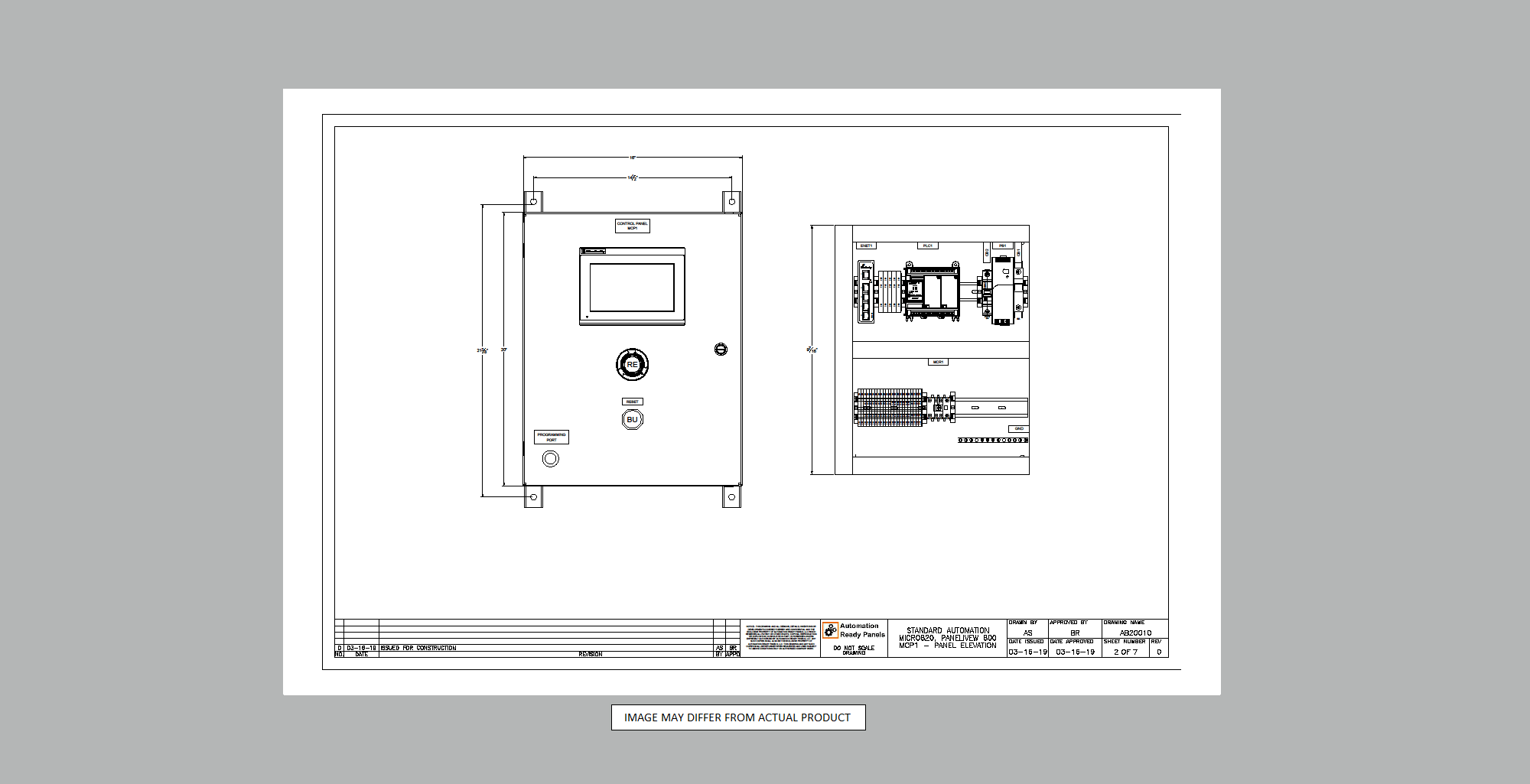

Includes Electrical Schematic Drawings and User/Programming Manual
1 Additional Hour of Free Custom Application Programming, Drawings Updates, and/or Remote Installation Support
Need a different version of this standard design? Please just Contact Us and we will post it for standard purchase.
Product Description
Automation Ready Panels introduces the next level of the Control Panel Design Customer Experience: Hardware Design, Software Design, and Engineering Service for the price of our Competitions Hardware Build-to-Print.
This Standard Automation Panel is based around a small micro PLC, Color/Touch HMI. With this control panel, the PLC can be programmed flexibly with many logic options and HMI with features and settings for operational flexibility. Automation Ready Panels pre-programs this system with Discrete Input Debounce (On/Off Timers) programming blocks to keep inputs from flutter or can be used for delay timers on levels, photoeyes, or other sensors. Motor and VFD programming blocks are included with feature rich functionality. VFDs are programmed using modbus to reduce IO requirements and bring in smart data from the device. A shell sequencer program has been added to reduce final integration time. The HMI has pre-designed graphics for IO status, VFD status and faults, settings input boxes, maintenance mode and manual start stop of motors, trends, user security, recipe management, and alarm summary. If desired, one of Automation Ready Panels controls engineers can program up to one hour of free programming (**) to finish off your sequencer, meeting your applications needs. This means that a fully functional controls system can be delivered and ready to install, wire sensors and motors, power up, and the system is up and running.
(**) The free included hour of programming can also be used either partially or fully for CAD drawings updates and/or remote installation phone support.
(***) Design according to UL508a
Need a different customization to this design? Please use the Contact Us webpage to let us know how we can help.
